On all flowcharts, assume that as you look at the flowchart the Y goes to the right and the N goes to the left. All code should be written in JavaScript.

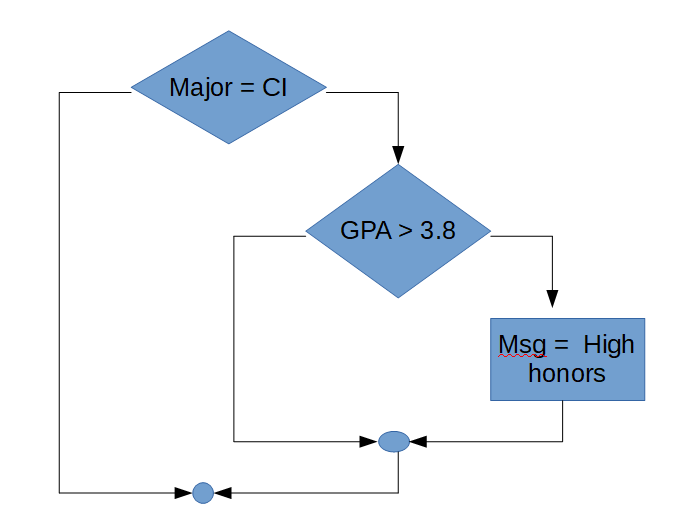

Flowchart #1:


Problem #1: Write the code shown in flowchart #1 using simple if statements.

Problem #2: Write the code shown in flowchart #1 using compound if statements. Note that sometimes they are called complex instead of compound.

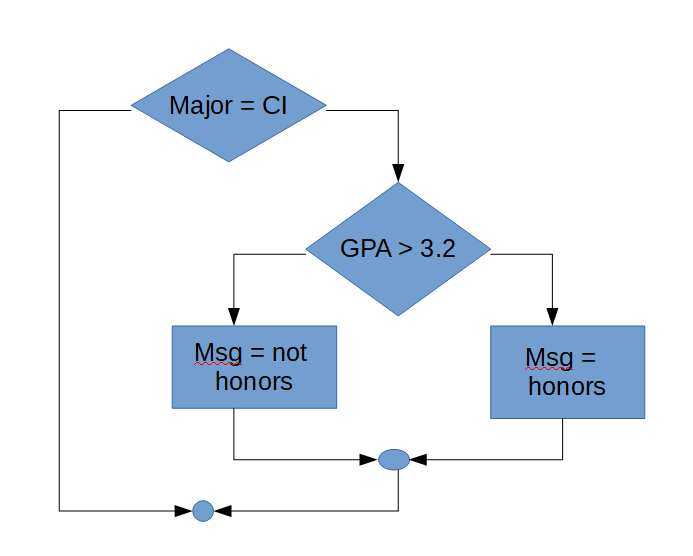

Flowchart #2:


Problem #3: Write the code shown in flowchart #2 using simple if statements.

Problem #4: Could the code shown in flowchart #2 be written using a compound AND statement. Explain your answer.

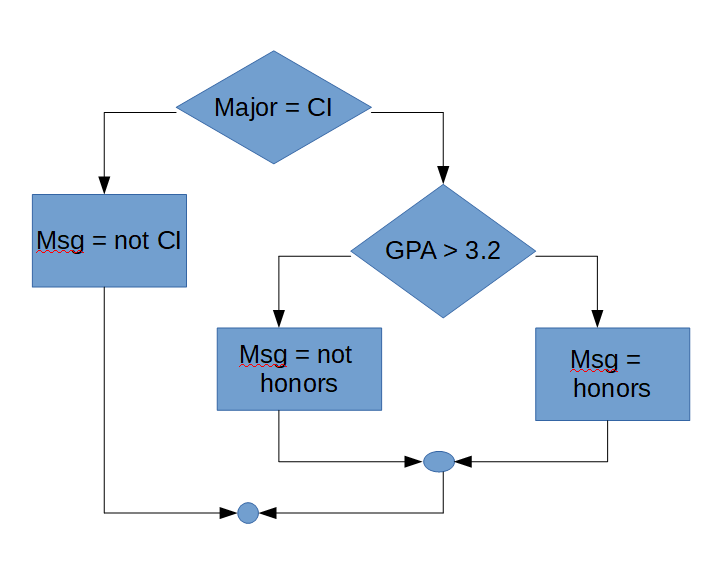

Flowchart #3:


Problem #5: Write the code shown in flowchart #3 using simple if statements.

Problem #6: Could the code shown in flowchart #3 be written using a compound AND statement? Explain your answer

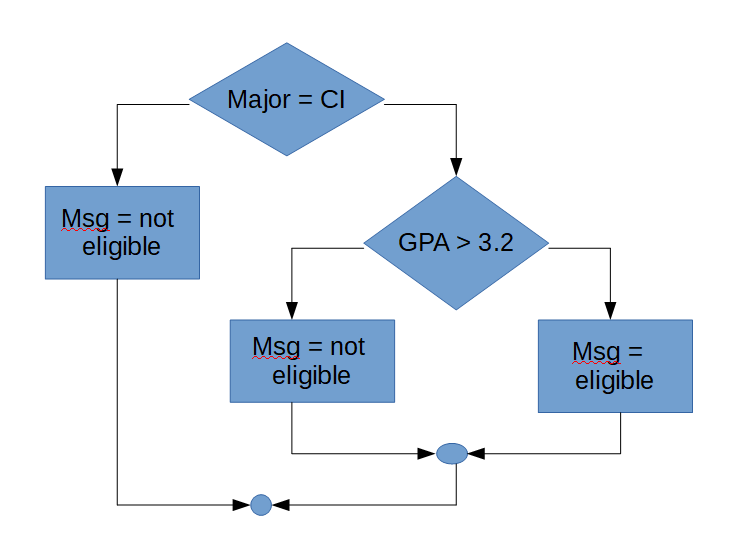

Flowchart #4:


Problem #7: Write the code shown in flowchart #4 using simple if statements.

Problem #8: Write the code shown in flowchart #4 using a compound if statements.

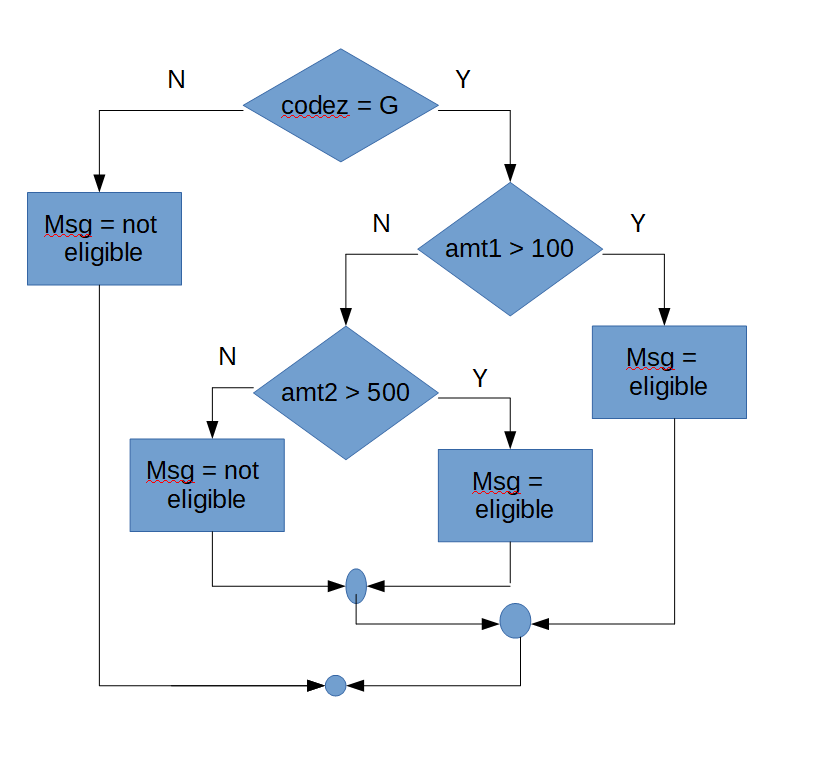

Flowchart #5:


Problem #9: Write the code shown in flowchart #5 using simple if statements.

Problem #10: Write the code shown in flowchart #5 using compound if statements.

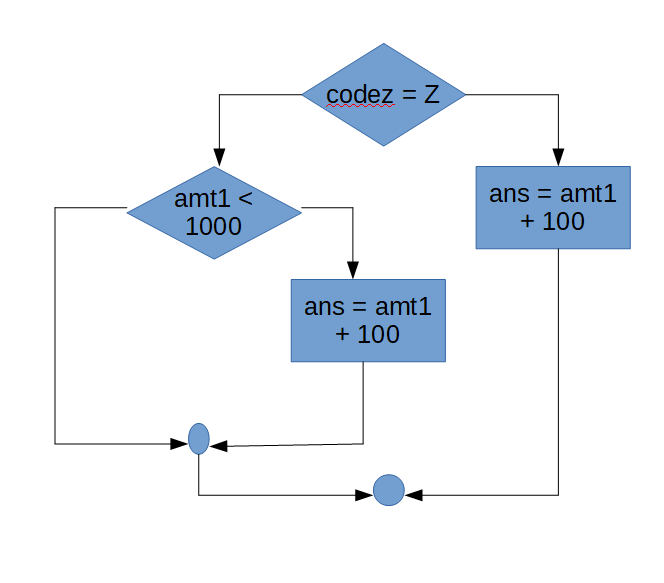

Flowchart #6:


Problem #11: Write the code shown in flowchart #6 using simple if statements.

Problem #12: Write the code shown in flowchart #6 using compound if statements.

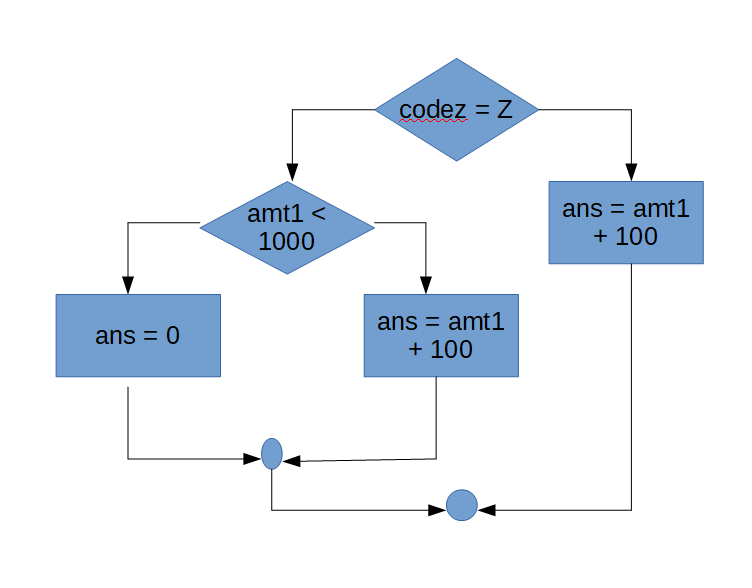

Flowchart #7:


Problem #13: Write the code shown in flowchart #7 using simple if statements.

Problem #14: Could the code shown in flowchart #7 be written using a compound OR statement? Explain your answer.

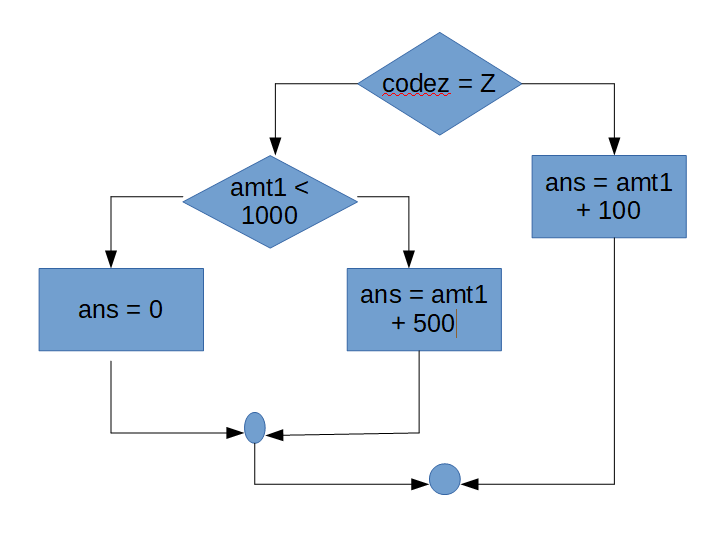

Flowchart #8:


Problem #15: Write the code shown in flowchart #8 using simple if statements.

Problem #16: Write the code shown in flowchart #8 using compound if statements.

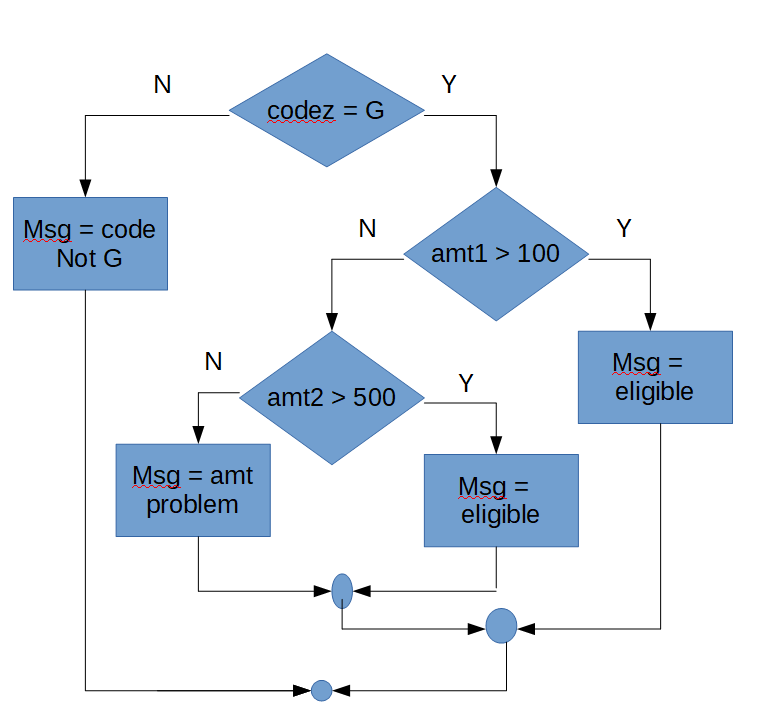

Flowchart #9:


Problem #17: Write the code shown in flowchart #9 using simple if statements.

Problem #18: Could the code shown in flowchart #9 be written using a compound statement? Explain your answer.
